STATIC VOLTAGE STABILISERS

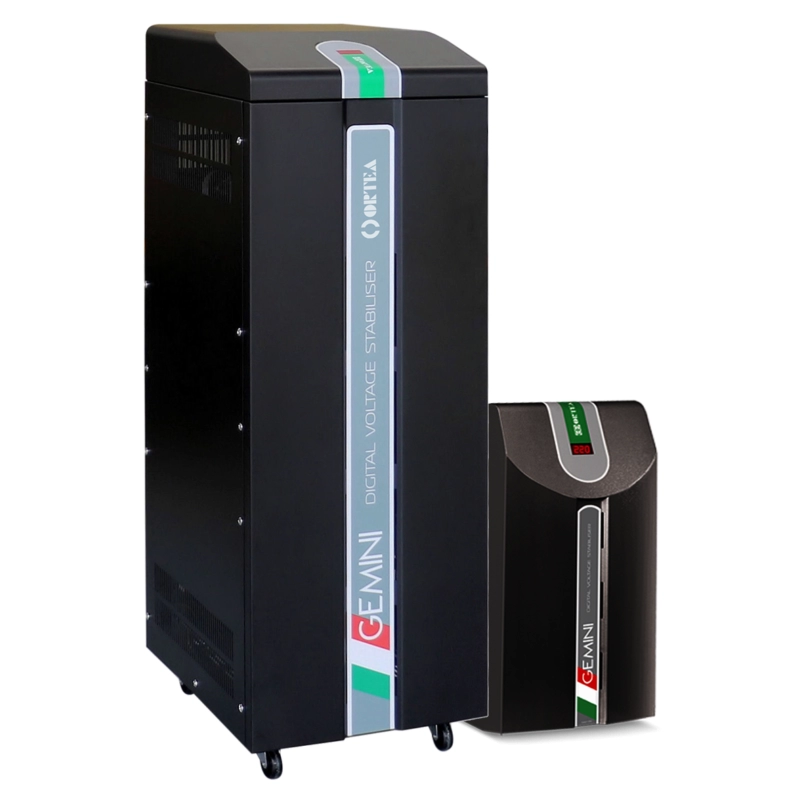

GEMINI PLUS STATIC VOLTAGE STABILISERS
TECHNICAL SPECIFICATIONS
Frequency
50Hz ±5% o 60Hz ±5%
Voltage regulation
IGBT controlled
Selectable target voltage
220-230-240V
Output voltage accuracy
±0.5%
Admitted load variation
Up to 100%
Cooling
Forced ventilation
Ambient temperature
-25/+45°C
Storage temperature
-25/+60°C
Max related humidity
<95% (non condensing)
Admitted overload
150% 2sec.
Colour
RAL 9005
Instrumentation
- Output digital voltmetre
Installation
Indoor
Overvoltage protection
- Class II output surge arrestors
Additional protections
- EMI/RFI filters
- Input circuit breaker
- Protection by-pass (automatic)
- Maintenance by-pass (manual)
